Digital 12V Evc Sinco Tech Race Car Gauges Do701 Electronic Oil Pressure Gauge

Digital 12V Evc Sinco Tech Race Car Gauges Do701 Electronic Valve Controller Auto Meter Oil Pressure Gauge Switch

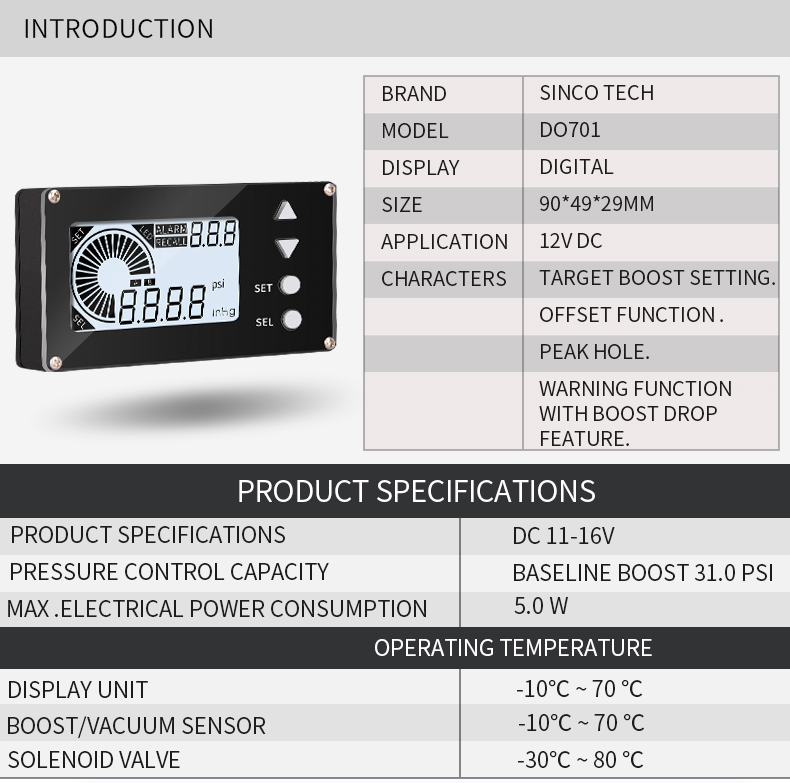

Name: EVC electronic valve controller
Brand: SINCO TECH
Model: DO 701
Display: Digital
Use: Boost Controller-Automotive Turbocharged Engine
Application: Vehicle that operates on a DC12v negative ground
Operating volt: DC 11V-16V
Pressure control capacity: Baseline Boost 31.0 PSI
Operating Temperature:
Display Unit: -10ºC ~ 70ºC
Boost/Vacuum Sensor: -10ºC ~ 70ºC
Solenoid Valve: -30ºC~ 80ºC
Max.Electrical Power Consumption: 5.0 W

Front Panel
1. Upper Switch:
adjust settings and alarm point of boost pressure,also can observe the peak of memory.
2. Lower Switch:
adjust settings and alarm point of boost pressure,also can
clear up the peak of memory.
3. Set Switch:
This button is used to select between the set mode A or B.
4. Mode Switch:
This button is used to select mode.

The car electronic instrument panel is the combined interface of all the instruments in the car, which shows the working status of the car, and is the interaction interface between people and the car.

Any inquiry or comment is highly appreciated, please contact us freely.Welcome to ISPEED !

Evc Sinco Tech Race Car Gauges

Digital 12V Race Car Gauges

Do701 Electronic Oil Pressure Gauge

Digital 12V Evc Sinco Tech Race Car Gauges Do701 Electronic Oil Pressure Gauge Images
